COMPACT MOTORS
“Series R“
When space is limited and working conditions are unforgiving, you need a motor designed to make a difference. The ‘R’ Series is the Italian response to the demand for power, compactness, and reliability in industrial marble and stone cutting.
gg
35
35 years of experience since 1991
100%
Made in Italy Production
15.000/Year
Annual Motor Production
Electric motors with reduced overall dimensions, custom-built.
The ultimate solution
for industrial cutting
When the situation demands precision, reliability, and superior performance, our electric motors stand out for their robust construction and energy efficiency. Engineered specifically for the cutting machine sector—particularly for marble and stone—our customers deploy these electric motors in extreme environments, where they face high-pressure water jets, solid residue, and ultra-fine dust.
Series ‘E’ Extruded Electric Motors :
Our extruded solution for those seeking the perfect balance between dimensions and power.

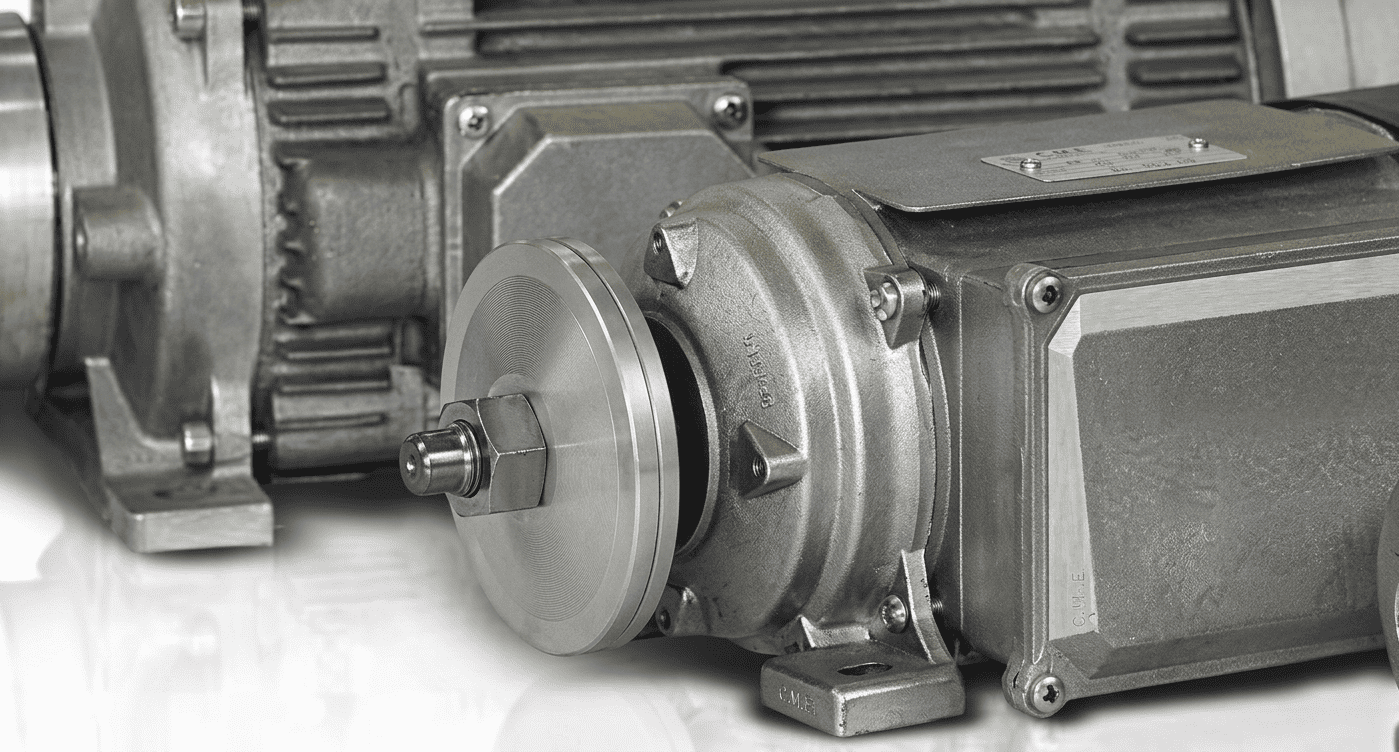

Series ‘R’ Electric Motor:
Low-profile electric motors for harsh environments.
Powered by a standard 230 V industrial plug, the Series R electric motors produced by CME generate impressive torque, which remains stable and consistent at high speeds, guaranteeing your tools a sharp, fast, and precise cut. When performance leaves no room for compromise.
The finest dusts slip almost everywhere.
But not in our electric motors.
The Series ‘R’ was born from a concrete need: to equip industrial cutting machines with electric motors that are compact, powerful, and capable of surviving hostile environments.
High-pressure water jets, solid residue, ultra-fine dust—daily scenarios for those working with marble and stone—do not represent a problem, but rather the very context for which these electric motors were expressly conceived. Every unit of the Series R is designed and manufactured in Italy by CME srl, combining precision engineering and selected materials to guarantee continuous reliability over time.
The result is an electric motor that does not occupy precious space inside the machine, does not yield under thermal or mechanical stress, and requires no unscheduled production downtime.
Choosing the Series ‘R’ means choosing a Made in Italy solution built around the real needs of industrial cutting: compactness, robustness, and operational continuity.
gg
COMPACT DESIGN
Electric motors
Designed to maximize power while minimizing dimensions, our electric motors are the ideal solution for applications where space is critical.
CUSTOM PRECISION
Advanced customization
Each electric motor is custom-developed to integrate seamlessly into your system, guaranteeing optimized performance based on your specific industrial requirements.
INTEGRATED EFFICIENCY
Energy efficiency
Maximum energy efficiency and consistent performance over time. Our solutions ensure operational reliability even in the most complex environments.
Technical Specifications – Series ‘R’ Low-Profile Electric Motors
2-pole extruded series
| TYPE | KW | HP | RPM | A | EFF 100% | COSφ 100% | MF | IS/IN | CS/CN | CM/CN | CN(NM) | J KGM² | WEIGHT KG |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RM 63 a/2 | 1,5 | 2,00 | 2800 | 11 | 65,0 | 0,91 | 35 | 2,8 | 0,6 | 2,1 | 5,2 | 0,00131 | 12,6 |
| RM 63 b/2 | 1,8 | 2,50 | 2800 | 13 | 68,0 | 0,89 | 40 | 2,7 | 0,55 | 2,2 | 6,3 | 0,00149 | 13,8 |
| RM 63 c/2 | 2,2 | 3,00 | 2800 | 13,5 | 76,0 | 0,93 | 45 | 2,8 | 0,62 | 2,2 | 7,7 | 0,00167 | 15,0 |
| RM 80 ca/2 | 2,2 | 3,00 | 2800 | 14,5 | 77,0 | 0,86 | 70 | 2,9 | 0,6 | 1,9 | 7,5 | 0,00347 | 17,9 |
| RM 80 cb/2 | 2,6 | 3,50 | 2800 | 18 | 75,0 | 0,84 | 80 | 2,8 | 0,6 | 2 | 8,9 | 0,00379 | 19,2 |
| RM 80 cc/2 | 3 | 4,00 | 2800 | 18 | 79,0 | 0,92 | 100 | 2,9 | 0,7 | 2,1 | 10,3 | 0,00395 | 19,9 |
| RM 80 cd/2 | 3,5 | 4,80 | 2800 | 21 | 79,0 | 0,92 | 100 | 2,7 | 0,65 | 1,85 | 12,0 | 0,00442 | 21,8 |
Why choose C.M.E. low-profile motors?

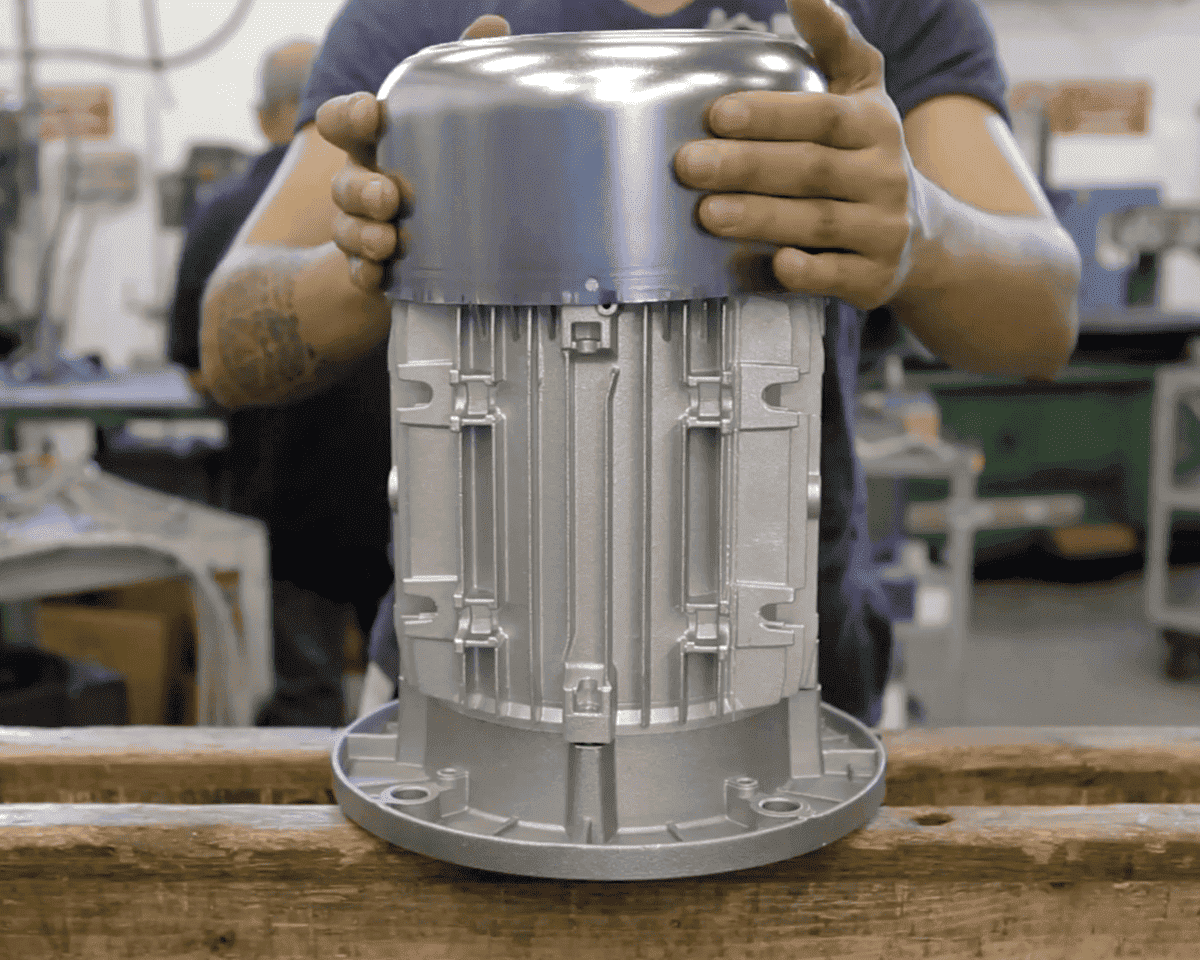

Since 1991, we have been designing solutions for industrial automation. Today, the synergy between CME Srl and the expertise of ICM Motori in Milan allows us to manage the entire production cycle in-house. This total control—from precision mechanical machining to the final winding—enables us to develop low-profile motors capable of delivering maximum power within minimal dimensions, guaranteeing a 100% Made in Italy product that is built to last.
Rapid Prototyping and Customization: Personalized mechanical modifications and bespoke winding design in record time.
Vertical Integration and Control: Fully in-house production cycle, ensuring absolute quality and supply chain resilience.
IE3 High Efficiency: Optimized performance parameters, exceeding European energy standards.
Tell us about your application. We will respond within a few hours.
Fill out the form and one of our engineers will contact you to define the most suitable solution. We can start from a technical specification, a machine drawing, or simply a description of your requirements.
Italian production of three-phase and single-phase asynchronous industrial electric motors, specializing in low-profile solutions for OEM manufacturers
